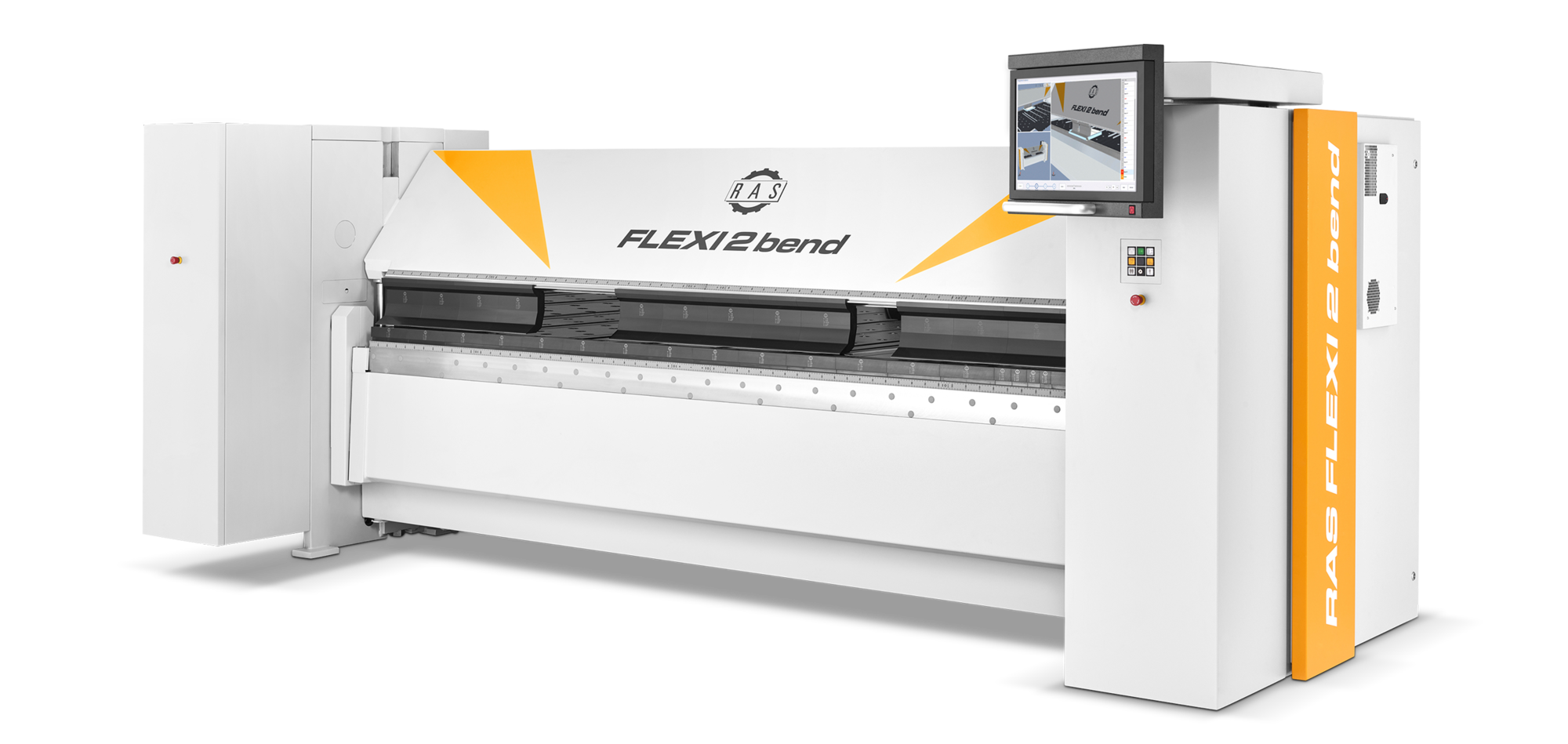

FLEXI2bend
Flexibility without limits!
The FLEXI2bend metal folding system is a study in flexibility. There are almost no limitations to your imagination when you want to create unique, complex parts with a high level of added value. Flexibility is the key to new products that will help you outperform your competition. The Bendex software automatically programs the parts, evaluates alternative bending strategies, and shows the bending sequence on the monitor in 3D. Expert knowledge converted into software!
FLEXI2bend Highlights
- Large free space around the tools: allows flexible part design
- Segmented upper beam tools for box and panel bending
- Automatic recognition of a tool change
- Segmented folding beam tools for interrupted bend lines
- Automatic clamping of the upper beam and folding beam tools
- SnapTools: automatic retraction from side flanges
- Fast beam movements: high productivity and throughput
- Intelligent crowning system for perfectly straight bends
- Rectangular gauging system or center extended T gauging system
- Maximum flexibility in bending cassettes, boxes and profiles
- Easy to operate
- Medium investment budget
- Shopfloor and office programming
Download
Download all information as PDF.
Download documents
Similar products
Which products covers similar needs.
Compare
Request a Quote
Add this product to your watchlist.
Add to watchlist
or
request directly
News and Updates
How Your Business Can Choose the Right Panel Bender
If you’re in the business of sheet metal fabrication, odds are you’ve considered press brakes vs. folding machines in the past. The ability to...
The Best Sheet Metal Fabrication Techniques for Speed and Precision
Want to know how you can stand out in today’s saturated fabrication market? Prioritize speed, precision, and efficiency. Whether you’re a small job...
Similar Machines
 FLEXI2bend 73.30-2 |
FLEXI2bend 73.40-2 |
 XLTbend 71.30 |
XLTbend 71.40 |
 UpDownCenter 78.33-2 |
UpDownCenter 78.40-2 |
UpDownCenter 78.43-2 |
 GIGAbend 76.30 |
GIGAbend 76.40 |
 XL-Center |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | |
| Bending length max | 3200 mm | 4060 mm | 3200 mm | 4060 mm | 3200 mm | 4060 mm | 4060 mm | 3200 mm | 4060 mm | 3200 mm |
| Thickness max | 3.0 mm / 11 ga | 2.5 mm / 13 ga | 3.0 mm / 11 ga | 2.5 mm / 13 ga | 4.0 mm / 9 ga | 3.0 mm / 11 ga | 3.0 mm / 11 ga | 6.0 mm / 1/4" | 5.0 mm / 6 ga | 1.5Â mm / 16 ga |
| Programming | semi-automatic | semi-automatic | semi-automatic | semi-automatic | semi-automatic | automatic | semi-automatic | semi-automatic | semi-automatic | automatic |
| Automation | medium | medium | high | high | high | high | high | medium | medium | high |
| Bending direction | up | up | up and down | up and down | up and down | up and down | up and down | up | up | up and down |
| Parts | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | profiles |
