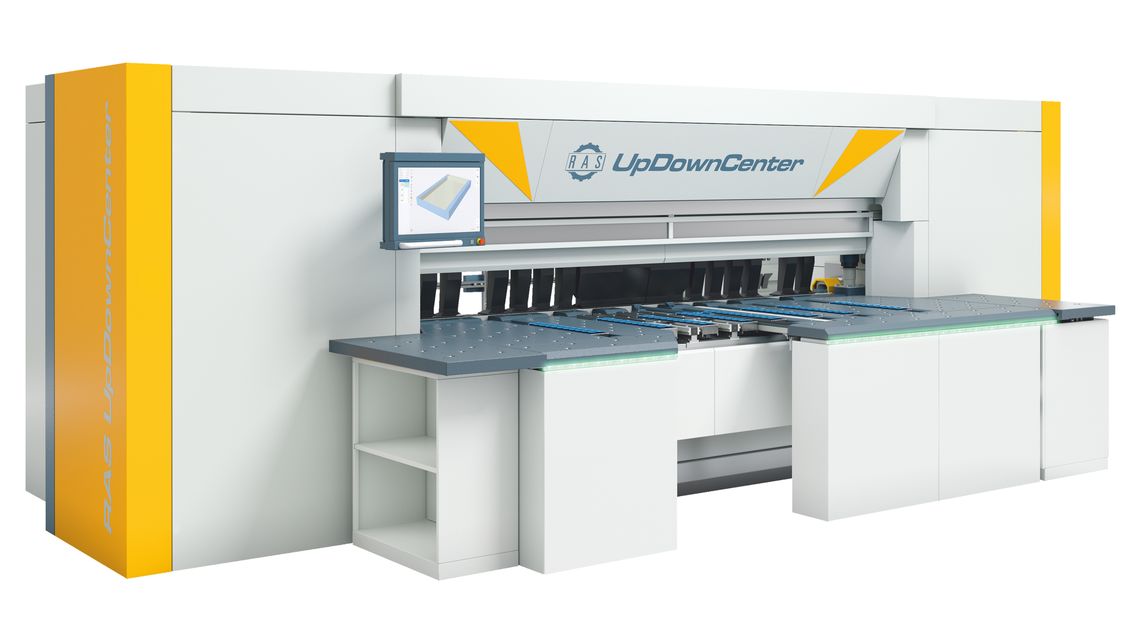

The UpDownCenter-2 is a semi-automatic bending center for panels and boxes up to 4060 mm bending length and up to 400 mm box height. With up to 4 mm bending capacity, it is ideal for thin and medium material thicknesses. The machine can be operated from the gauging but also from the folding beam side. The optional tool changer reduces set-up times and increases productivity especially on jobs with small batch sizes. Besides the up and down folding capability and the automated PosLift part positioning system, another true highlight of the machine is the automatic one-click programming software.

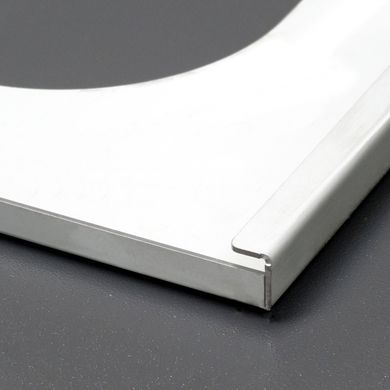

Here are some samples of how accurately the software programs a parts starting from the imported STEP file and how accurately the machine already bends the very first part.
Download all information as PDF.
Which products covers similar needs.
Compare
Add this product to your watchlist.
If you’re in the business of fabricating server cabinets, NEMA boxes, or switchgear cabinets, precision, efficiency, and flexibility are...
Choosing the right fabricating machine for your metalworking needs is crucial to achieving efficient and precise results. This blog will...
Happy holidays from the RAS Systems team! As the year comes to an end, we’d like to take a moment to thank our partners and customers for their...
|
UpDownCenter 78.33-2 |
UpDownCenter 78.43-2 |
UpDownCenter 78.30-2 |
UpDownCenter 78.40-2 |
 XLTbend 71.40 |
XLTbend 71.30 |
 Multibend-Center 79.31-2 |
 Multibend-Center 79.26-2 ECO |
Multibend-Center 79.26-2 |
Multibend-Center 79.22-2 ECO |
Multibend-Center 79.22-2 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | |
| Bending length max | 3200 mm | 4060 mm | 3200 mm | 4060 mm | 4060 mm | 3200 mm | 3060 mm | 2560 mm | 2560 mm | 2160 mm | 2160 mm |
| Thickness max | 4.0 mm / 9 ga | 3.0 mm / 11 ga | 4.0 mm / 9 ga | 3.0 mm / 11 ga | 2.5 mm / 13 ga | 3.0 mm / 11 ga | 2.00mm/14 ga | 2.0 mm / 14 ga | 2.0 mm (2.5 mm) / 14 ga (13 ga) | 2.0 mm / 14 ga | 2.0 mm (2.5 mm)/14 ga (13 ga) |
| Programming | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic |
| Automation | high | high | high | high | high | high | high | high | high | high | high |
| Bending direction | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down |
| Parts | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes |
