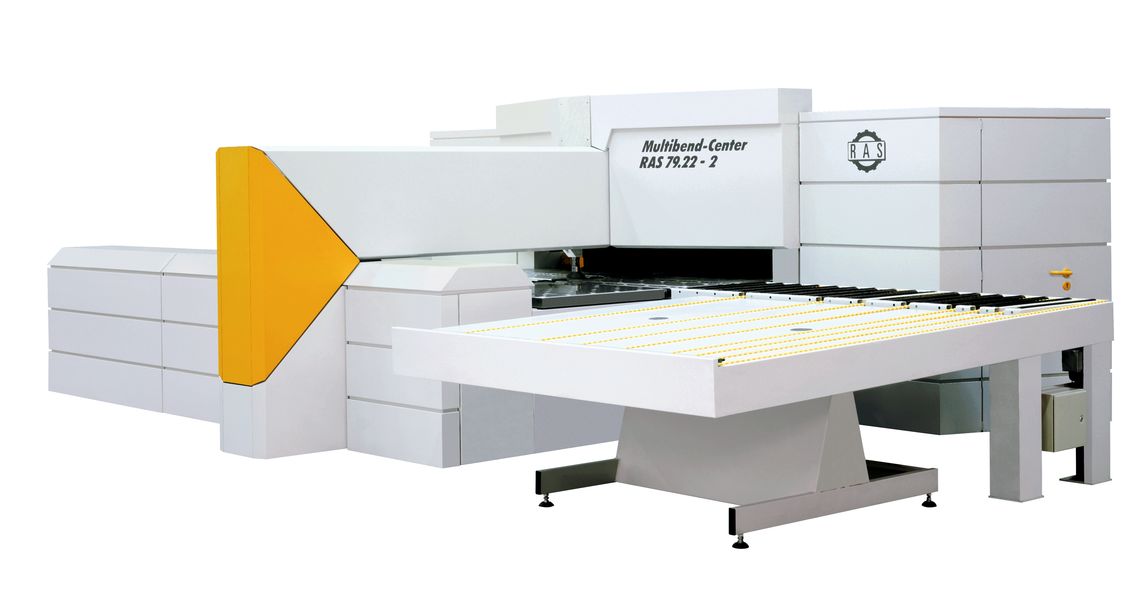

Multibend-Center
Welcome to The Future of Panel Bending
If you want to bend precision parts, fully automatically, at high speeds, in high quantity, regardless of batch-size, with the highest levels of flexibility and total repeatability, welcome to the next level of metal fabrication. Folding with the RAS Multibend-Center makes your dreams come true! The RAS Multibend-Center panel bender is available in working lengths of 2160 mm, 2560 mm and 3060 mm.
Multibend-Center Highlights
- Automatic loading, squaring, bending and unloading
- Automatic folding sequences, highest level of productivity

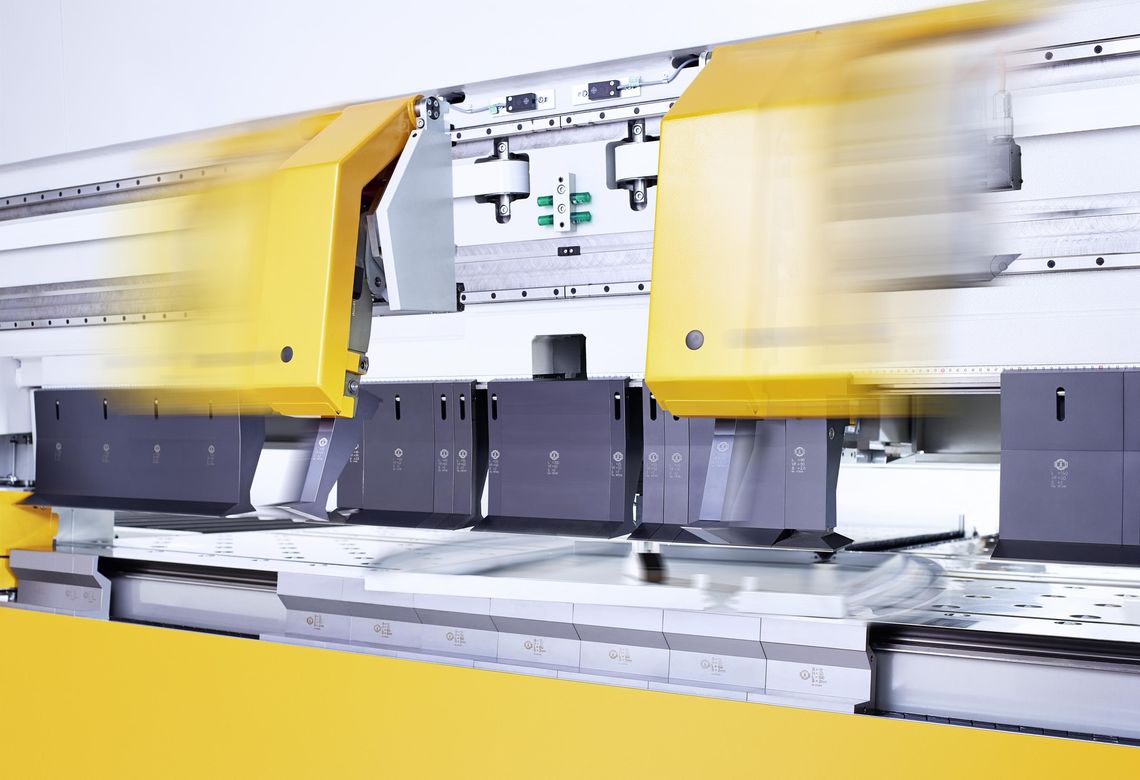

- Automatic tool setup
- Highest level of precision and repeatability
- Scratch free bending, no wear of tools
- One-click part programming
- Numerous options for blank loading and part unloading
Layouts
In addition to manual loading and unloading, there are a variety of options for automatic blank loading and unloading and stacking of finished parts.
Depending on the requested degree of automation, the manufacturing conditions and the available budget, multiple handling systems can be added to the Multibend-Center. Automation components can be added on the loading as well as on the unloading side. Due to the modular design of the panel bender, later upgrades are also possible.
Comparison of loading systems
| Manual loading | MiniFeeder | Gantry loader | Robot loading | |
| No of material stacks | variable | 1 | 1-2 | up to 4 |
| Storage connection | no | no | yes | yes |
| Blank flipping | manual | no | yes | yes |
| Kit production possible | yes | yes | yes | yes |
| available for which models | all | all | all | 79.22-2 / 79.26-2 |
Download
Download all information as PDF.
Download documents
Similar products
Which products covers similar needs.
Compare
Request a Quote
Add this product to your watchlist.
Add to watchlist
or
request directly
News and Updates
Cut Labor Costs with Automation in Metal Fabrication
Reducing labor costs in metal fabrication is critical for maintaining a competitive edge. By automating repetitive tasks, businesses can not...
Meeting Precision Manufacturing Challenges with RAS Systems: The Multibend-Center Solution
If you’re involved in precision manufacturing you know the challenges that come with balancing speed, accuracy, and efficiency. At RAS...
Similar Machines
|

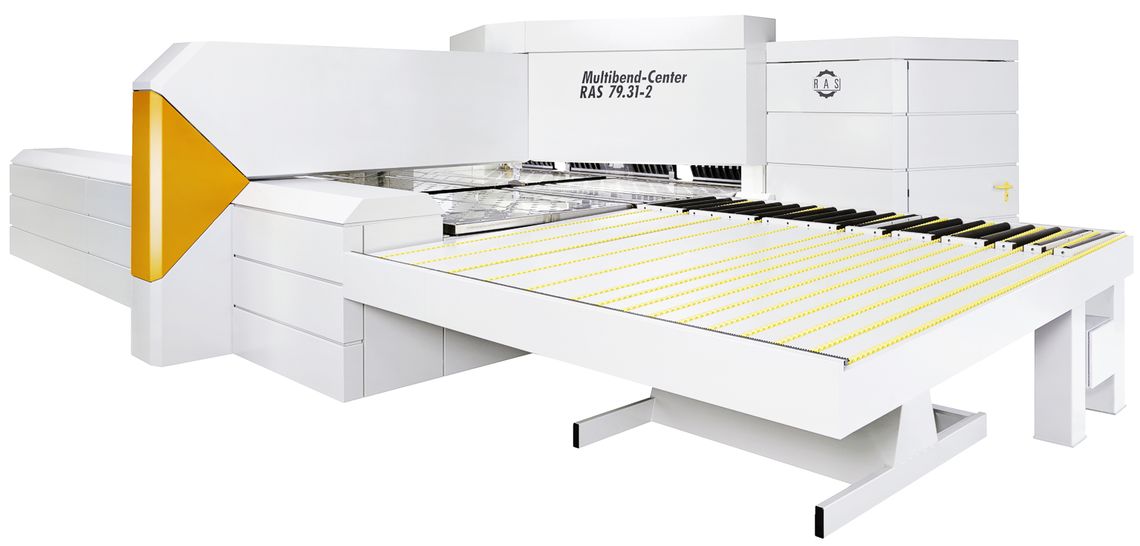

Multibend-Center 79.31-2 |
Multibend-Center 79.26-2 |
Multibend-Center 79.22-2 |
 Multibend-Center 79.26-2 ECO |
Multibend-Center 79.22-2 ECO |
 UpDownCenter 78.33-2 |
UpDownCenter 78.43-2 |
UpDownCenter 78.30-2 |
UpDownCenter 78.40-2 |
 XLTbend 71.30 |
XLTbend 71.40 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | Add to watchlist | |
| Bending length max | 3060 mm | 2560 mm | 2160 mm | 2560 mm | 2160 mm | 3200 mm | 4060 mm | 3200 mm | 4060 mm | 3200 mm | 4060 mm |
| Thickness max | 2.00mm/14 ga | 2.0 mm (2.5 mm) / 14 ga (13 ga) | 2.0 mm (2.5 mm)/14 ga (13 ga) | 2.0 mm / 14 ga | 2.0 mm / 14 ga | 4.0 mm / 9 ga | 3.0 mm / 11 ga | 4.0 mm / 9 ga | 3.0 mm / 11 ga | 3.0 mm / 11 ga | 2.5 mm / 13 ga |
| Programming | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic | automatic |
| Automation | high | high | high | high | high | high | high | high | high | high | high |
| Bending direction | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down | up and down |
| Parts | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes | Profiles and boxes |
